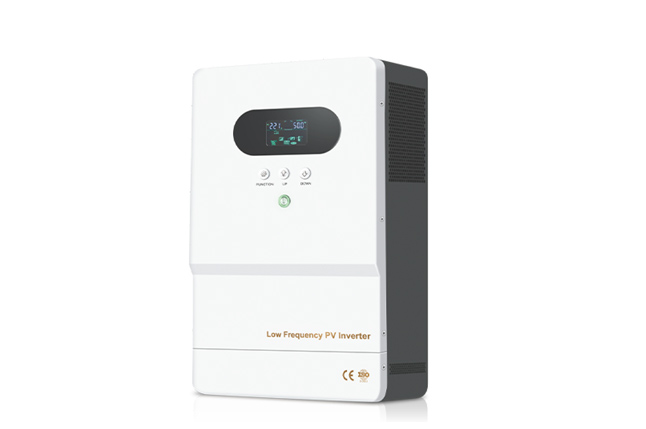

Peculiarity
Pure sine wave output, toroidal low-loss transformer, high-efficiency inverter conversion,customizable dual output voltage;
Intelligent LCD integrated display, convenient for users to view the status of the equipment andparameters;
Adjustable utility charging current range of 0-30A, while providing optional operating modes;Starting more than 3 times the peak power, and fully automatic and complete protection featuresto ensure the safe and stable operation of equipment;
New fault code query function, convenient for users to monitor the real-time operating status of theequipment;
Support diesel (gas)oil generator, suitable for a variety of harsh power environment;
with dual-use industrial and civilian functions, wall-mounted design, easy to install and use.
Product parameter
ltems:LF | 15212/24/48 | 20212/24/48 | 30224/48 | 40224/48 | 50248 | 60248 | 80248 | 10348 | 12348 |
Rated Power | 1500W | 2000W | 3000W | 4000W | 5000W | 6000W | 8000W | 10KW | 12KW |
Phase Type | Single phase L-N:Split phase can be customized L1-L2,L1-N,L2-N | ||||||||
Standard Battery Voltage | 12/24/48VDC | 24/48VDC | 48VDC | ||||||
Battery Type | Lead-acid/Gel Battery /Lithium Batteries / Custom battery | ||||||||
Rated Input Voltage | 110VAC/120VAC/220VAC /230VAC/240VAC | ||||||||
AC Input Voltage Range | 85VAC-138VAC(110VAC)/95VAC-148VAC(120VAC)/170VAC-275VAC(220VAC)/180VAC-285VAC (230VAC)/190VAC-295VAC(240VAC) | ||||||||
AC lnput Frequency Range | 45Hz-55Hz(50Hz),55Hz-65Hz(60Hz) | ||||||||
Output Wave/Conversion Efficiency | Pure Sine Wwave/ >85% | ||||||||
Ac output Voltage / FrequencyRange(INV mode) | 110VAC土2%/120VAC土2%/220VAC±2%/230VAC土2%/240VAC土2%,50/60Hz±1% | ||||||||
Rated Current | 30A-60A | 60A-100A | 100A | ||||||
PV Array Max Power | 12V(420W)/24V(840W)/48V(1680W) | 12V(840W)/24V(1680W)/48V(3360W) | 5600W | ||||||
| Max PV input Voltage(Voc)(At The Lowest Temperature) | 12V/24V ststem:120VDC;48V ststem:180VDC | ||||||||
MPPT TrackingVoltage Range | 12V ststem(15V-80V)/24V ststem(30V-100V)/48V ststem(60V-140V) | ||||||||
Protection | Battery undervoltage protection/Battery overvoltage protection/Overload power protection/ Inverter output short circuit protection/Temperature protection | ||||||||
Display | LCD | ||||||||
Communication lnterfaces | RS485/RS232,APP(WIFl monitoring or GPRS monitoring)Optional | ||||||||
Product Size(L*W*Hmm) | 470*300*148 | 530*335*158 | 684*430*250 | ||||||
Packing Size(L*W*Hmm) | 545*385*223 | 605*420*233 | 705*485*315 | ||||||
N.W.(kg) | 13.5 | 18 | 20 | 22 | 26 | 24 | 45 | 55 | 58 |
G.W.(kg) | 15 | 19.5 | 21.5 | 24 | 28 | 26 | 52 | 62 | 65 |
