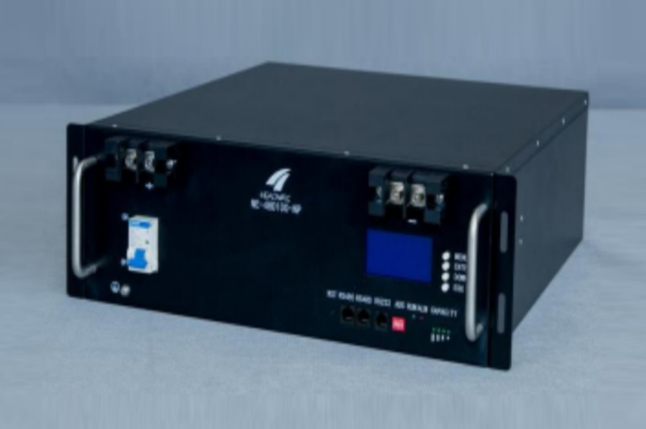

Features of LiFePO4 Battery
● Longer Cycle Life: Offers up to 10 times longer cycle life and
5 times longer float/calendar life than lead acid battery,helping to
minimize replacement cost and reduce total cost of ownership.
● Lighter Weight: About 40% of the weight of a comparable
lead acid battery,A ”drop in” replacement for lead acid battery.
● Higher Power: Delivers twice power of lead acid battery, even high discharge rate,while maintain high energy capacity.
● Wider Temperature Range: -10℃~55℃.
● Superior Safety: Lithium iron phosphate chemistry eliminates the risk of explosion or combustion due to high impact,over charging or short circuit situation.
● No Memory Effect: Support unstable partial state of charge(UPSOC) (charge/discharge)
Functions of Battery
● OVP,UVP,OTP,OCP,SCP.
● Self-management on charging and discharging,single cell balancing function.
● Supports communication with equipment over RS485.
● Intelligent design,supports battery upgrade over RS232.
● Colorful LCD,displays battery information
Qualifications
● 20 years professional experience on lithium ion battery power designing, manufacturing, sales
● Passed ISO9001, ISO14001, ISO45001, UL1642, CE, ROHS, IEC62619, IEC62620, UN38.3
● Battery cell cost advantage
General Data | |
| Nominal Voltage | 48V |
| Nominal Capacity | 100Ah |
| Energ | 4800Wh |
| Internal Resistance(ACR) | ≤30mΩ |
| Cycle Life | ≥3000 次 |
| Design Life | ≥10 years@25℃ |
| Self-Discharge(30days) | ≤5% @25℃ |
| Efficiency of Charge | ≥98% |
| Efficiency of Discharge | ≥100% @ 0.2C |
| ≥96% @ 0.5C | |
| Charge Mode | 0.2C to 54V,then 54V charge current to 0.02C(CC/CV) |
| Max.Continuous Charge Current | 100A |
| Max.Continuous Discharge Current | 100A |
| Discharge Cut-off Voltage | ≤43.5V |
| Water Dust Resistance | IP21 |
| Case | Iron(Insulation painting) |
| Dimensions（W*D*H） (excluding hanger and handlebar) | 442*510*133mm |
| Max.Weight | ≤43kg |
| Min.Gravimetric Specificen ergy | ≥112Wh/kg |
| Parallelin maximum | 15 pcs |
Operating Environment | |
| Charge Temperature Range | 0℃~45℃ |
| Discharge Temperature Range | -10℃~55℃ |
| Optimum Operation Temperature | 10℃~35℃ |
| Storage Temperature | -10℃~35℃ |
| ≤85% Relative Humidity | |
General Functions | |
| Parallel Communication | RS485 |
| Battery with Equipment | RS485 |
| Battery De bugging Communication | RS232 |
| SOC Light | 4 * LED |
| Charge Current limit | When the charging current exceeds the set value,turn on the current limit and limit the current to 20A |
Optional Functions | |
| LCD Screen | Yes Displays the total voltage pack,cell voltage,temperature,BMS status,etc |
| No | |
| Gyroscopeanti-theft | Yes Keep battery tilt more than 15° to turn on anti-theft |
| No | |
| Buzzer | Yes No |
| Dry Contact | Yes PIN1 to PIN2:Normally open,closed during low power PIN3 to PIN4:Normally open,closed during fault protection |
| No | |
